本文基于 aosp android-14.0.0_r15 版本讲解。
上节给出了，与 SurfaceFlinger 交互的 Native App 示例程序。本节主要分析示例程序中 Native App 与 SurfaceFinger 建立 Binder 通信的过程。
# 1. 先搂一眼 SurfaceFlinger
我们的 Native App 需要和 SurfaceFlinger 建立 Binder 通信，在分析代码之前，我们先了解一下 SurfaceFlinger 的实现。
当系统 init 进程启动之后，会开始解析 system/core/rootdir/init.rc 文件，在 init.rc 文件中，申明了启动 core 的一系列服务：
...
on boot
...
class_start core
...
1
2
3
4
5
2
3
4
5
其中包含了 surfaceflinger 服务（进程）。其信息定义在 frameworks/native/services/surfaceflinger/surfaceflinger.rc：
service surfaceflinger /system/bin/surfaceflinger
class core animation
user system
group graphics drmrpc readproc
capabilities SYS_NICE
onrestart restart --only-if-running zygote
task_profiles HighPerformance
socket pdx/system/vr/display/client stream 0666 system graphics u:object_r:pdx_display_client_endpoint_socket:s0
socket pdx/system/vr/display/manager stream 0666 system graphics u:object_r:pdx_display_manager_endpoint_socket:s0
socket pdx/system/vr/display/vsync stream 0666 system graphics u:object_r:pdx_display_vsync_endpoint_socket:s0
1
2
3
4
5
6
7
8
9
10
2
3
4
5
6
7
8
9
10
通过 surfaceflinger.rc 文件我们可以知道 surfaceflinger 进程对应的可执行文件是 /system/bin/surfaceflinger。
通过搜索 Android.bp 文件可以找到 /system/bin/surfaceflinger 对应的源码是 frameworks/native/services/surfaceflinger/main_surfaceflinger.cpp 中的 main 函数：
// frameworks/native/services/surfaceflinger/main_surfaceflinger.cpp
int main(int, char**) {
// 注册 SIGPIPE 信号的处理函数
signal(SIGPIPE, SIG_IGN);
// binder 线程初始化
hardware::configureRpcThreadpool(1 /* maxThreads */,
false /* callerWillJoin */);
// 启动 Graphics Allocator Hal 服务
startGraphicsAllocatorService();
//设置 Binder 线程最多为 4
// When SF is launched in its own process, limit the number of
// binder threads to 4.
ProcessState::self()->setThreadPoolMaxThreadCount(4);
// 设置线程优先级
// 有兴趣的同学可以看看 https://paul.pub/android-process-schedule/
// Set uclamp.min setting on all threads, maybe an overkill but we want
// to cover important threads like RenderEngine.
if (SurfaceFlinger::setSchedAttr(true) != NO_ERROR) {
ALOGW("Failed to set uclamp.min during boot: %s", strerror(errno));
}
// 设置 binder 线程池的优先级
// The binder threadpool we start will inherit sched policy and priority
// of (this) creating thread. We want the binder thread pool to have
// SCHED_FIFO policy and priority 1 (lowest RT priority)
// Once the pool is created we reset this thread's priority back to
// original.
int newPriority = 0;
int origPolicy = sched_getscheduler(0);
struct sched_param origSchedParam;
int errorInPriorityModification = sched_getparam(0, &origSchedParam);
if (errorInPriorityModification == 0) {
int policy = SCHED_FIFO;
newPriority = sched_get_priority_min(policy);
struct sched_param param;
param.sched_priority = newPriority;
errorInPriorityModification = sched_setscheduler(0, policy, ¶m);
}
// 关注点 1
// 初始化驱动，启动 Binder 线程池
// start the thread pool
sp<ProcessState> ps(ProcessState::self());
ps->startThreadPool();
// Reset current thread's policy and priority
if (errorInPriorityModification == 0) {
errorInPriorityModification = sched_setscheduler(0, origPolicy, &origSchedParam);
} else {
ALOGE("Failed to set SurfaceFlinger binder threadpool priority to SCHED_FIFO");
}
// 关注点 2
// 初始化一个 SurfaceFlinger 对象
// instantiate surfaceflinger
sp<SurfaceFlinger> flinger = surfaceflinger::createSurfaceFlinger();
// Set the minimum policy of surfaceflinger node to be SCHED_FIFO.
// So any thread with policy/priority lower than {SCHED_FIFO, 1}, will run
// at least with SCHED_FIFO policy and priority 1.
if (errorInPriorityModification == 0) {
flinger->setMinSchedulerPolicy(SCHED_FIFO, newPriority);
}
// 设置进程为高优先级以及前台调度策略
setpriority(PRIO_PROCESS, 0, PRIORITY_URGENT_DISPLAY);
set_sched_policy(0, SP_FOREGROUND);
// 关注点 3
// SurfaceFlinger 初始化
// initialize before clients can connect
flinger->init();
// 关注点 4
// 发布 Binder 服务
// publish surface flinger

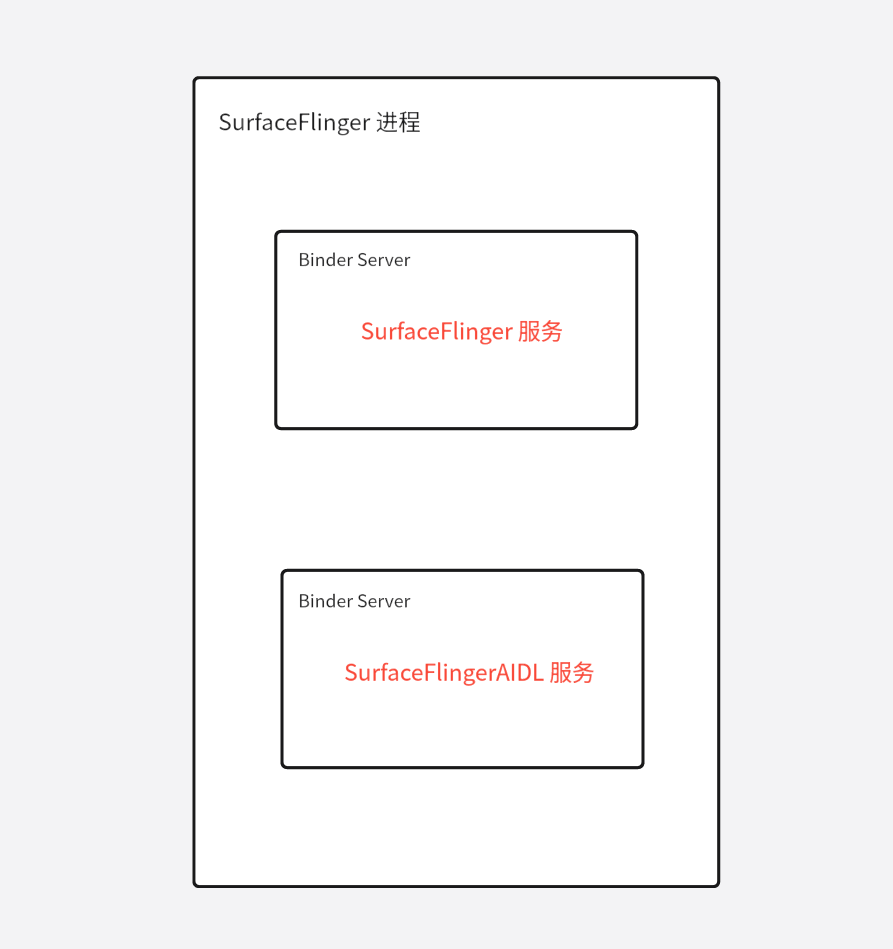

// 注册了一个叫 SurfaceFlinger 的 binder 服务
sp<IServiceManager> sm(defaultServiceManager());
sm->addService(String16(SurfaceFlinger::getServiceName()), flinger, false,
IServiceManager::DUMP_FLAG_PRIORITY_CRITICAL | IServiceManager::DUMP_FLAG_PROTO);

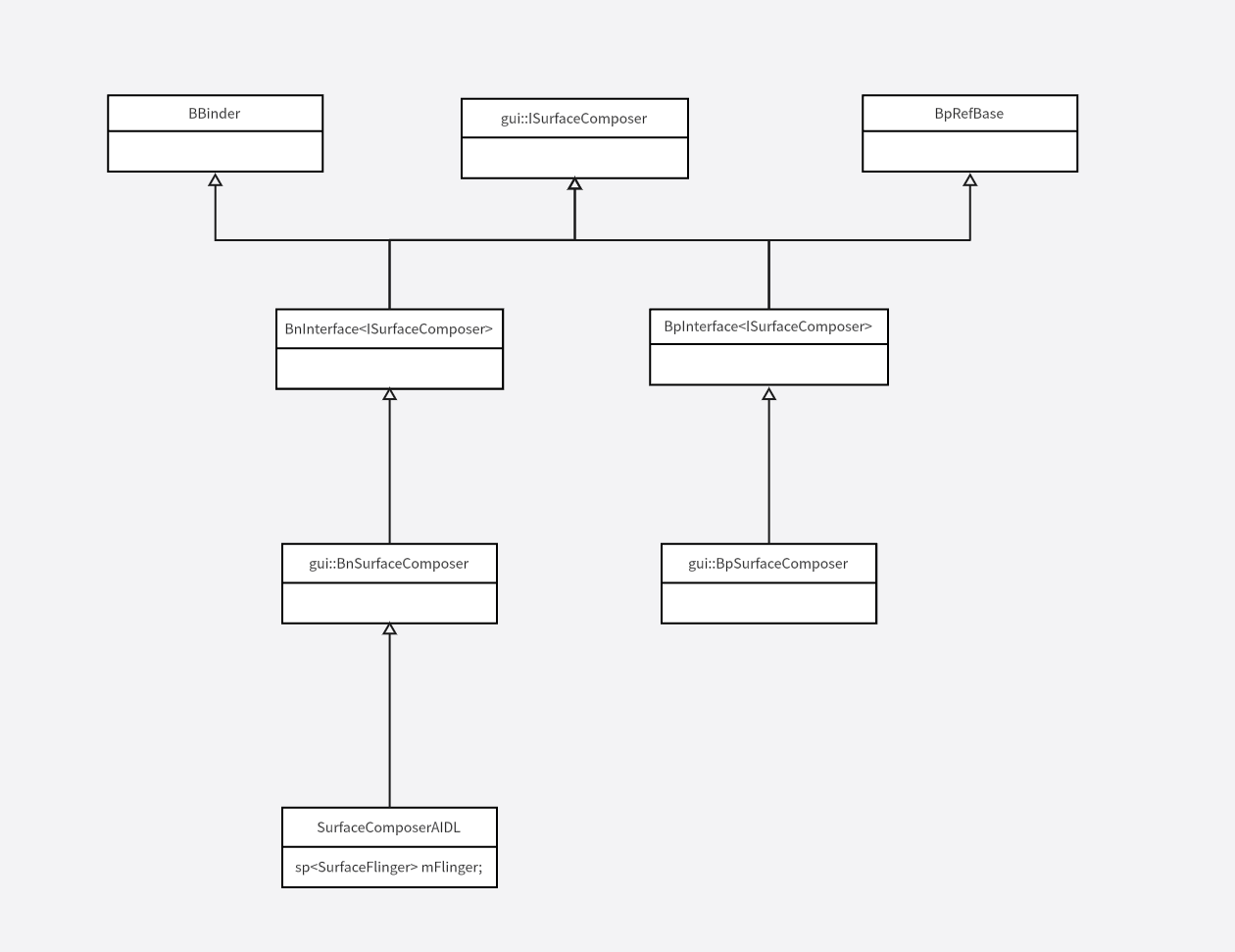

// 注册了一个叫 SurfaceFlingerAIDL 的 binder 服务
// publish gui::ISurfaceComposer, the new AIDL interface
sp<SurfaceComposerAIDL> composerAIDL = sp<SurfaceComposerAIDL>::make(flinger);
sm->addService(String16("SurfaceFlingerAIDL"), composerAIDL, false,
IServiceManager::DUMP_FLAG_PRIORITY_CRITICAL | IServiceManager::DUMP_FLAG_PROTO);
// 关注点5
// 启动 DisplayService 服务 https://www.jianshu.com/p/fa115146949f
startDisplayService(); // dependency on SF getting registered above
// 进程调度模式设置为实时进程的FIFO
if (SurfaceFlinger::setSchedFifo(true) != NO_ERROR) {
ALOGW("Failed to set SCHED_FIFO during boot: %s", strerror(errno));
}
// 关注点 6
// 启动 SurfaceFlinger,进入无限循环
// run surface flinger in this thread
flinger->run();
return 0;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
代码中做了较为详细的注释，我们主要分析标注了关注点的 6 个地方.
# 1.1 关注点 1，初始化 Binder 驱动
sp<ProcessState> ps(ProcessState::self());
ps->startThreadPool();
1
2
2
ProcessState::self()初始化 Binder 驱动，ps->startThreadPool()开启线程池
这部分内容我们在Binder 服务注册过程情景分析之 C++ 篇 (opens new window) 已经做过详细分析了，这里就不再重复了。
# 1.2 关注点 2，初始化 SurfaceFlinger 对象
sp<SurfaceFlinger> flinger = surfaceflinger::createSurfaceFlinger();
1
createSurfaceFlinger 函数的实现如下：
// /frameworks/native/services/surfaceflinger/SurfaceFlingerFactory.cpp
sp<SurfaceFlinger> createSurfaceFlinger() {
static DefaultFactory factory;
return sp<SurfaceFlinger>::make(factory);
}
1
2
3
4
5
6
2
3
4
5
6
这里通过工厂模式去 new 了一个 SurfaceFlinger 对象。
SurfaceFlinger 类的定义如下：
class SurfaceFlinger : public BnSurfaceComposer,
public PriorityDumper,
private IBinder::DeathRecipient,
private HWC2::ComposerCallback,
private ICompositor,
private scheduler::ISchedulerCallback {
// ......
}
1
2
3
4
5
6
7
8
9
10
2
3
4
5
6
7
8
9
10

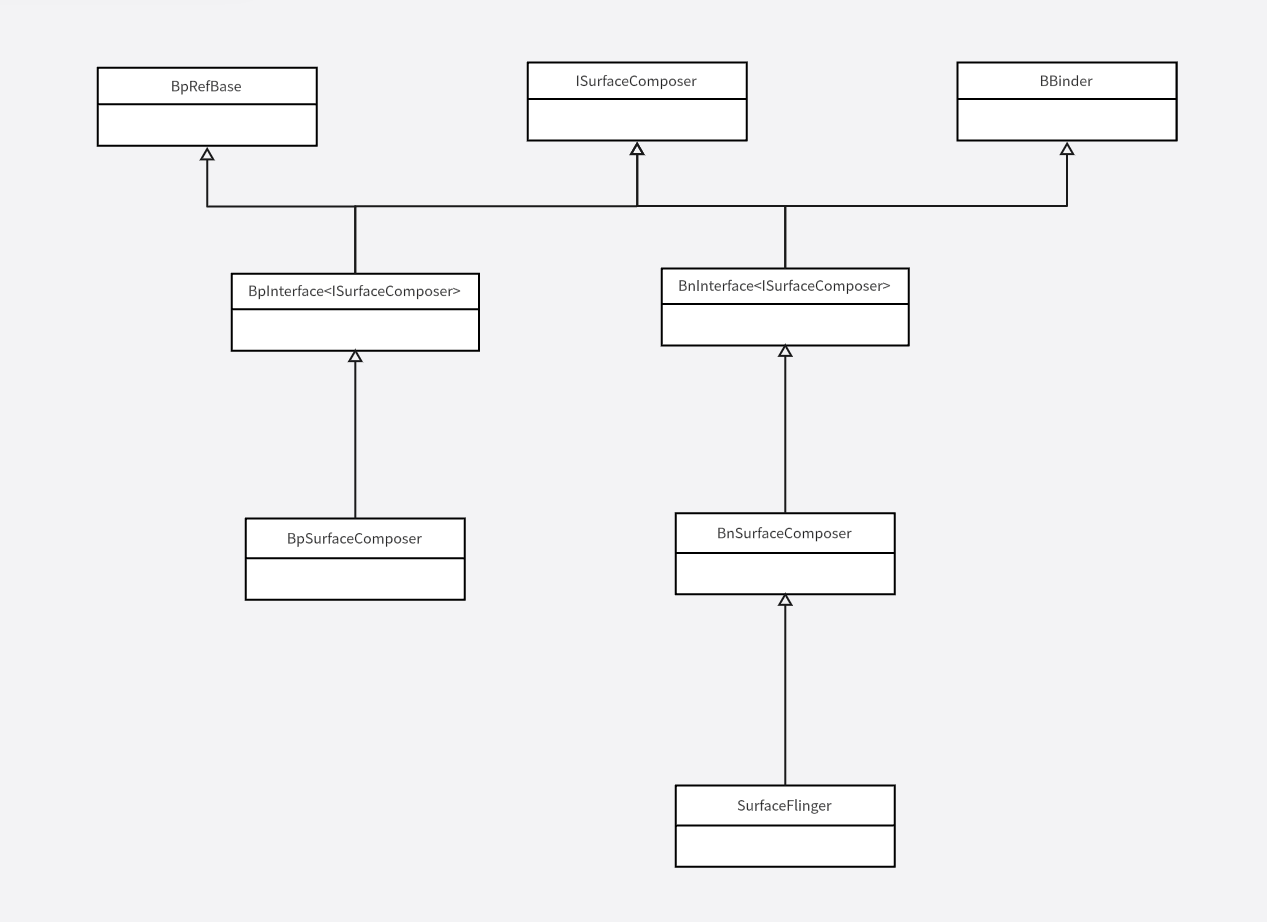

SurfaceFlinger 相关类类图如下：
目前我们主要关注两个父类 ISurfaceComposer 和 ComposerCallback：
- ISurfaceComposer 是一个接口，定义了 SurfaceFlinger 作为一个 Binder 服务对外提供的服务
- ComposerCallback 是 HWC 模块的回调，这个包含了三个很关键的回调函数，
- onComposerHotplug 函数表示显示屏热插拔事件
- onComposerHalRefresh 函数表示 Refresh 事件
- onComposerHalVsync 表示 Vsync 信号事件。
# 1.3 关注点3， init SurfaceFlinger
flinger->init();
1
这里调用 init 函数初始化 SurfaceFlinger，具体实现如下：
std::unique_ptr<compositionengine::CompositionEngine> mCompositionEngine;
// /frameworks/native/services/surfaceflinger/SurfaceFlinger.cpp
void SurfaceFlinger::init() FTL_FAKE_GUARD(kMainThreadContext) {
ALOGI( "SurfaceFlinger's main thread ready to run. "
"Initializing graphics H/W...");
addTransactionReadyFilters();
Mutex::Autolock lock(mStateLock);
// 构建 RenderEngine，用于 Client 合成
// Get a RenderEngine for the given display / config (can't fail)
// TODO(b/77156734): We need to stop casting and use HAL types when possible.
// Sending maxFrameBufferAcquiredBuffers as the cache size is tightly tuned to single-display.
auto builder = renderengine::RenderEngineCreationArgs::Builder()
.setPixelFormat(static_cast<int32_t>(defaultCompositionPixelFormat))
.setImageCacheSize(maxFrameBufferAcquiredBuffers)
.setUseColorManagerment(useColorManagement)
.setEnableProtectedContext(enable_protected_contents(false))
.setPrecacheToneMapperShaderOnly(false)
.setSupportsBackgroundBlur(mSupportsBlur)
.setContextPriority(
useContextPriority
? renderengine::RenderEngine::ContextPriority::REALTIME
: renderengine::RenderEngine::ContextPriority::MEDIUM);
if (auto type = chooseRenderEngineTypeViaSysProp()) {
builder.setRenderEngineType(type.value());
}
mRenderEngine = renderengine::RenderEngine::create(builder.build());
mCompositionEngine->setRenderEngine(mRenderEngine.get());
mMaxRenderTargetSize =
std::min(getRenderEngine().getMaxTextureSize(), getRenderEngine().getMaxViewportDims());
// Set SF main policy after initializing RenderEngine which has its own policy.
if (!SetTaskProfiles(0, {"SFMainPolicy"})) {
ALOGW("Failed to set main task profile");
}
mCompositionEngine->setTimeStats(mTimeStats);
mCompositionEngine->setHwComposer(getFactory().createHWComposer(mHwcServiceName));
mCompositionEngine->getHwComposer().setCallback(*this);
ClientCache::getInstance().setRenderEngine(&getRenderEngine());
enableLatchUnsignaledConfig = getLatchUnsignaledConfig();
if (base::GetBoolProperty("debug.sf.enable_hwc_vds"s, false)) {
enableHalVirtualDisplays(true);
}
// Process hotplug for displays connected at boot.
LOG_ALWAYS_FATAL_IF(!configureLocked(),
"Initial display configuration failed: HWC did not hotplug");
// Commit primary display.
sp<const DisplayDevice> display;
if (const auto indexOpt = mCurrentState.getDisplayIndex(getPrimaryDisplayIdLocked())) {
const auto& displays = mCurrentState.displays;
const auto& token = displays.keyAt(*indexOpt);
const auto& state = displays.valueAt(*indexOpt);
processDisplayAdded(token, state);
mDrawingState.displays.add(token, state);
display = getDefaultDisplayDeviceLocked();
}
LOG_ALWAYS_FATAL_IF(!display, "Failed to configure the primary display");
LOG_ALWAYS_FATAL_IF(!getHwComposer().isConnected(display->getPhysicalId()),
"Primary display is disconnected");
// TODO(b/241285876): The Scheduler needlessly depends on creating the CompositionEngine part of
// the DisplayDevice, hence the above commit of the primary display. Remove that special case by
// initializing the Scheduler after configureLocked, once decoupled from DisplayDevice.
initScheduler(display);
dispatchDisplayHotplugEvent(display->getPhysicalId(), true);
// Commit secondary display(s).
processDisplayChangesLocked();
// initialize our drawing state
mDrawingState = mCurrentState;
onActiveDisplayChangedLocked(nullptr, *display);
static_cast<void>(mScheduler->schedule(
[this]() FTL_FAKE_GUARD(kMainThreadContext) { initializeDisplays(); }));
mPowerAdvisor->init();
char primeShaderCache[PROPERTY_VALUE_MAX];
property_get("service.sf.prime_shader_cache", primeShaderCache, "1");
if (atoi(primeShaderCache)) {
if (setSchedFifo(false) != NO_ERROR) {
ALOGW("Can't set SCHED_OTHER for primeCache");
}
mRenderEnginePrimeCacheFuture = getRenderEngine().primeCache();
if (setSchedFifo(true) != NO_ERROR) {
ALOGW("Can't set SCHED_OTHER for primeCache");
}
}
// Inform native graphics APIs whether the present timestamp is supported:
const bool presentFenceReliable =
!getHwComposer().hasCapability(Capability::PRESENT_FENCE_IS_NOT_RELIABLE);
mStartPropertySetThread = getFactory().createStartPropertySetThread(presentFenceReliable);
if (mStartPropertySetThread->Start() != NO_ERROR) {
ALOGE("Run StartPropertySetThread failed!");
}
ALOGV("Done initializing");
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
在 init 函数中，使用到了一个 mCompositionEngine 成员，它在 SurfaceFlinger 的构造函数中初始化：
// /frameworks/native/services/surfaceflinger/SurfaceFlinger.cpp
SurfaceFlinger::SurfaceFlinger(Factory& factory, SkipInitializationTag)
: mFactory(factory),
// ......
mCompositionEngine(mFactory.createCompositionEngine()), // 这里
// ......
mWindowInfosListenerInvoker(sp<WindowInfosListenerInvoker>::make()) {
ALOGI("Using HWComposer service: %s", mHwcServiceName.c_str());
}
1
2
3
4
5
6
7
8
9
2
3
4
5
6
7
8
9
CompositionEngine 的定义如下：
// /frameworks/native/services/surfaceflinger/CompositionEngine/include/compositionengine/impl/CompositionEngine.h
class CompositionEngine : public compositionengine::CompositionEngine {
public:
// ......
private:
std::unique_ptr<HWComposer> mHwComposer;
renderengine::RenderEngine* mRenderEngine;
std::shared_ptr<TimeStats> mTimeStats;
bool mNeedsAnotherUpdate = false;
nsecs_t mRefreshStartTime = 0;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
2
3
4
5
6
7
8
9
10
11
12
13
CompositionEngine 持有了 HWComposer 和 RenderEngine 两个重要成员，类图如下所示：
HWComposer 一方面向 SurfaceFlinger 提供硬件 Vsync 信号，另一方面用于 Device 合成 Layer 图层，也就是硬件合成。
RenderEngine 主要用于 Client 合成 Layer 图层，也就是软件合成。
CompositionEngine 主要充当了 SurfaceFlinger 与 RenderEngine & HWComposer 之间的桥梁。
接着我们回到 init 函数中：
RenderEngine::create 构建了一个 RenderEngine 对象。
getFactory().createHWComposer(mHwcServiceName) 构建一个 HWComposer 对象，并通过 mCompositionEngine->getHwComposer().setCallback(*this); 将当前 SurfaceFlinger 对象设置为 HWComposer 的回调。
主要关注以下三个回调函数：
struct ComposerCallback {
// 热插拔
virtual void onComposerHalHotplug(hal::HWDisplayId, hal::Connection) = 0;
// 刷新
virtual void onComposerHalRefresh(hal::HWDisplayId) = 0;
// 硬件 Vysnc 信号
virtual void onComposerHalVsync(hal::HWDisplayId, nsecs_t timestamp,
std::optional<hal::VsyncPeriodNanos>) = 0;
//......
}
1
2
3
4
5
6
7
8
9
10
2
3
4
5
6
7
8
9
10
initScheduler 主要是进行 Vysnc 处理相关类的初始化，这个会在 Vysnc 章节来做分析。
# 1.4 关注点4，注册 Binder 服务
// .....
sp<IServiceManager> sm(defaultServiceManager());
sm->addService(String16(SurfaceFlinger::getServiceName()), flinger, false,
IServiceManager::DUMP_FLAG_PRIORITY_CRITICAL | IServiceManager::DUMP_FLAG_PROTO);
// ......
// publish gui::ISurfaceComposer, the new AIDL interface
sp<SurfaceComposerAIDL> composerAIDL = sp<SurfaceComposerAIDL>::make(flinger);
// 注册了一个叫 SurfaceFlingerAIDL 的 binder 服务
sm->addService(String16("SurfaceFlingerAIDL"), composerAIDL, false,
IServiceManager::DUMP_FLAG_PRIORITY_CRITICAL | IServiceManager::DUMP_FLAG_PROTO);
// ......
1
2
3
4
5
6
7
8
9
10
11
12
13
2
3
4
5
6
7
8
9
10
11
12
13

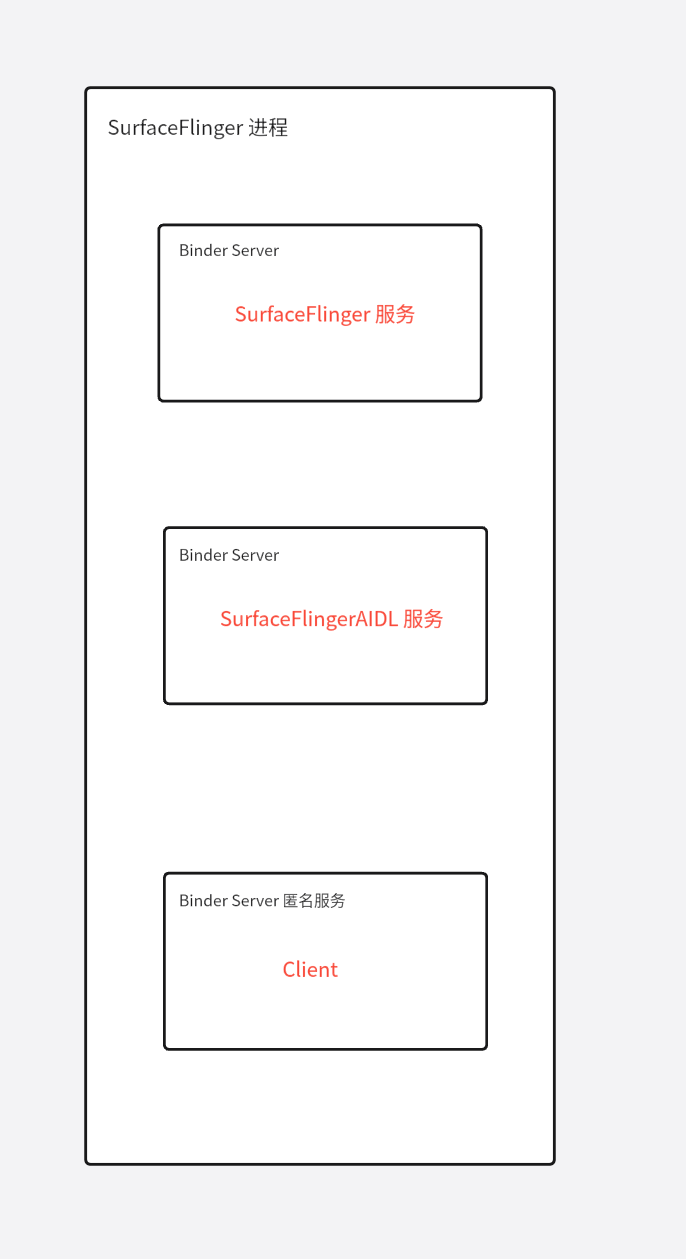

关注点 4 处在主函数中注册了 SurfaceFlinger 和 SurfaceComposerAIDL 两个 Binder 服务。
SurfaceFlinger Binder 服务相关类的关系如下图所示：
SurfaceFlinger Binder 服务对应的接口类是 ISurfaceComposer：
class ISurfaceComposer: public IInterface {
public:
DECLARE_META_INTERFACE(SurfaceComposer)
// flags for setTransactionState()
enum {
eAnimation = 0x02,
// Explicit indication that this transaction and others to follow will likely result in a
// lot of layers being composed, and thus, SurfaceFlinger should wake-up earlier to avoid
// missing frame deadlines. In this case SurfaceFlinger will wake up at
// (sf vsync offset - debug.sf.early_phase_offset_ns). SurfaceFlinger will continue to be
// in the early configuration until it receives eEarlyWakeupEnd. These flags are
// expected to be used by WindowManager only and are guarded by
// android.permission.WAKEUP_SURFACE_FLINGER
eEarlyWakeupStart = 0x08,
eEarlyWakeupEnd = 0x10,
eOneWay = 0x20
};
/* open/close transactions. requires ACCESS_SURFACE_FLINGER permission */
virtual status_t setTransactionState(
const FrameTimelineInfo& frameTimelineInfo, Vector<ComposerState>& state,
const Vector<DisplayState>& displays, uint32_t flags, const sp<IBinder>& applyToken,
InputWindowCommands inputWindowCommands, int64_t desiredPresentTime,
bool isAutoTimestamp, const std::vector<client_cache_t>& uncacheBuffer,
bool hasListenerCallbacks, const std::vector<ListenerCallbacks>& listenerCallbacks,
uint64_t transactionId, const std::vector<uint64_t>& mergedTransactionIds) = 0;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
这里只有一个函数 setTransactionState，应该不是 SurfaceFlinger 对外提供服务的主战场。
我们接着看 SurfaceComposerAIDL Binder 服务，其相关类关系如下图所示：
从名字就可以看出，SurfaceComposerAIDL 是通过 aidl 辅助实现的 binder 服务。
对应的 aidl 文件是：
// /frameworks/native/libs/gui/aidl/android/gui/ISurfaceComposer.aidl
package android.gui;
// ......
/** @hide */
interface ISurfaceComposer {
enum VsyncSource {
eVsyncSourceApp = 0,
eVsyncSourceSurfaceFlinger = 1
}
enum EventRegistration {
modeChanged = 1 << 0,
frameRateOverride = 1 << 1,
}
void bootFinished();
@nullable IDisplayEventConnection createDisplayEventConnection(VsyncSource vsyncSource,
EventRegistration eventRegistration, @nullable IBinder layerHandle);
@nullable ISurfaceComposerClient createConnection();
@nullable IBinder createDisplay(@utf8InCpp String displayName, boolean secure,
float requestedRefreshRate);
void destroyDisplay(IBinder display);
long[] getPhysicalDisplayIds();
@nullable IBinder getPhysicalDisplayToken(long displayId);
FrameEvent[] getSupportedFrameTimestamps();
void setPowerMode(IBinder display, int mode);
DisplayStatInfo getDisplayStats(@nullable IBinder display);
//......
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
aidl 文件中定义了大量的函数，这里只贴出了部分。
ISurfaceComposer.aidl 文件主要生成了以下的类：
- gui::ISurfaceComposer：描述 binder 服务的接口
- gui::BnSurfaceComposer：binder 服务端对象
- gui::BpSurfaceComposer：binder 代理端对象
该服务提供了大量的函数供客户端调用。
# 1.5 关注点5，启动显示服务
startDisplayService();
1
对应的实现是：
static void startDisplayService() {
using android::frameworks::displayservice::V1_0::implementation::DisplayService;
using android::frameworks::displayservice::V1_0::IDisplayService;
sp<IDisplayService> displayservice = sp<DisplayService>::make();
status_t err = displayservice->registerAsService();
// b/141930622
if (err != OK) {
ALOGE("Did not register (deprecated) IDisplayService service.");
}
}
1
2
3
4
5
6
7
8
9
10
11
12
2
3
4
5
6
7
8
9
10
11
12
这里会注册一个显示服务，Framework 层很少会接触到 DisplayService，DisplayService 实际是一个 hidl hal，定义在 frameworks/native/services/displayservice 目录下，其主要作用是向其他 Vendor 模块提供显示器的 hotplug 事件 和 Vsync 信号。
我们可以从 hal 文件从看一下 DisplayService 对外提供的接口：
package android.frameworks.displayservice@1.0;
import IEventCallback;
interface IDisplayEventReceiver {
/**
* 添加callback，开始接收Events事件，热插拔是默认打开的，Vysnc需要通过setVsyncRate打开
*/
init(IEventCallback callback) generates (Status status);
/**
* 开始或停止发送callback
*/
setVsyncRate(int32_t count) generates (Status status);
/**
* 请求一个Vsync，如果setVsyncRate是0，这不起作用
*/
requestNextVsync() generates (Status status);
/**
* Server端丢弃所以的callback，停止发送
*/
close() generates (Status status);
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
调用 init 的时候会传入一个 IEventCallback callback 回调：
package android.frameworks.displayservice@1.0;
interface IEventCallback {
/**
* Vsync事件
*/
oneway onVsync(uint64_t timestamp, uint32_t count);
/**
* hotplug事件
*/
oneway onHotplug(uint64_t timestamp, bool connected);
};
1
2
3
4
5
6
7
8
9
10
11
12
13
2
3
4
5
6
7
8
9
10
11
12
13
当有显示器热插拔事件的时候就会回调 onHotplug 函数
调用 requestNextVsync 函数后，下一个 Vysnc 信号到来的时候就会回调到 onVsync 函数。
# 1.6 关注点6，进入无限循环
flinger->run()
1
run 函数的实现如下：
std::unique_ptr<scheduler::Scheduler> mScheduler;
void SurfaceFlinger::run() {
mScheduler->run();
}
1
2
3
4
5
2
3
4
5
// /frameworks/native/services/surfaceflinger/Scheduler/Scheduler.h
class Scheduler : android::impl::MessageQueue {
//.......
}
// /frameworks/native/services/surfaceflinger/Scheduler/Scheduler.cpp
void Scheduler::run() {
while (true) {
waitMessage();
}
}
// /frameworks/native/services/surfaceflinger/Scheduler/MessageQueue.cpp
void MessageQueue::waitMessage() {
do {
IPCThreadState::self()->flushCommands();
int32_t ret = mLooper->pollOnce(-1);
switch (ret) {
case Looper::POLL_WAKE:
case Looper::POLL_CALLBACK:
continue;
case Looper::POLL_ERROR:
ALOGE("Looper::POLL_ERROR");
continue;
case Looper::POLL_TIMEOUT:
// timeout (should not happen)
continue;
default:
// should not happen
ALOGE("Looper::pollOnce() returned unknown status %d", ret);
continue;
}
} while (true);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
这里的 MessageQueue 对 Looper 进行了简单的包装，实际这里就是一个 Native Looper。
# 2. App 与 SurfaceFlinger 之间的 Binder 通信通道建立
在了解了 SurfaceFlinger 后，我们就可以开始分析上一节的示例代码了。
int main(int argc, char ** argv) {
sp<SurfaceComposerClient> surfaceComposerClient = new SurfaceComposerClient;
status_t err = surfaceComposerClient->initCheck();
if (err != OK) {
ALOGD("SurfaceComposerClient::initCheck error: %#x\n", err);
return;
}
// ......
}
1
2
3
4
5
6
7
8
9
10
2
3
4
5
6
7
8
9
10
我们 new 一个 SurfaceComposerClient 对象，SurfaceComposerClient 是 App 与 SurfaceFlinger 通信的辅助类，其构造函数如下：
// frameworks/native/libs/gui/SurfaceComposerClient.cpp
SurfaceComposerClient::SurfaceComposerClient() : mStatus(NO_INIT) {}
1
2
2
构造函数，除了给 mStatus 成员初始化一个值，就没了。
SurfaceComposerClient 中还定义了 onFirstRef 函数，在首次引用时，会被调用：
void SurfaceComposerClient::onFirstRef() {
sp<gui::ISurfaceComposer> sf(ComposerServiceAIDL::getComposerService());
if (sf != nullptr && mStatus == NO_INIT) {
sp<ISurfaceComposerClient> conn;
binder::Status status = sf->createConnection(&conn);
if (status.isOk() && conn != nullptr) {
mClient = conn;
mStatus = NO_ERROR;
}
}
}
1
2
3
4
5
6
7
8
9
10
11
2
3
4
5
6
7
8
9
10
11
onFirstRef 函数会先调用到 ComposerServiceAIDL::getComposerService()：
// frameworks/native/libs/gui/include/private/gui/ComposerServiceAIDL.h
class ComposerServiceAIDL : public Singleton<ComposerServiceAIDL> {
sp<gui::ISurfaceComposer> mComposerService;
sp<IBinder::DeathRecipient> mDeathObserver;
mutable std::mutex mMutex;
ComposerServiceAIDL();
bool connectLocked();
void composerServiceDied();
friend class Singleton<ComposerServiceAIDL>;
public:
// Get a connection to the Composer Service. This will block until
// a connection is established. Returns null if permission is denied.
static sp<gui::ISurfaceComposer> getComposerService();
};
// /frameworks/native/libs/gui/SurfaceComposerClient.cpp
/*static*/ sp<gui::ISurfaceComposer> ComposerServiceAIDL::getComposerService() {
// 获取单例对象
ComposerServiceAIDL& instance = ComposerServiceAIDL::getInstance();
std::scoped_lock lock(instance.mMutex);
if (instance.mComposerService == nullptr) {
// 调用 connectLocked 获取 binder 服务
if (ComposerServiceAIDL::getInstance().connectLocked()) {
ALOGD("ComposerServiceAIDL reconnected");
WindowInfosListenerReporter::getInstance()->reconnect(instance.mComposerService);
}
}
return instance.mComposerService;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
getComposerService 函数中会去获取到 ComposerServiceAIDL 单例对象，然后调用 ComposerServiceAIDL 单例对象的 connectLocked 方法去获取 SurfaceFlingerAIDL binder 服务：
bool ComposerServiceAIDL::connectLocked() {
const String16 name("SurfaceFlingerAIDL");
// 向 sm 获取到 SurfaceFlingerAIDL binder 服务代理端
mComposerService = waitForService<gui::ISurfaceComposer>(name);
if (mComposerService == nullptr) {
return false; // fatal error or permission problem
}
// Create the death listener.
class DeathObserver : public IBinder::DeathRecipient {
ComposerServiceAIDL& mComposerService;
virtual void binderDied(const wp<IBinder>& who) {
ALOGW("ComposerService aidl remote (surfaceflinger) died [%p]", who.unsafe_get());
mComposerService.composerServiceDied();
}
public:
explicit DeathObserver(ComposerServiceAIDL& mgr) : mComposerService(mgr) {}
};
// 注册死亡通知
mDeathObserver = new DeathObserver(*const_cast<ComposerServiceAIDL*>(this));
IInterface::asBinder(mComposerService)->linkToDeath(mDeathObserver);
return true;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
connectLocked 获取到名为 SurfaceFlingerAIDL 的 binder 服务代理端 sp<gui::ISurfaceComposer> mComposerService，这个和上一节的分析相吻合。
接着通过这个代理端对象远程调用 createConnection 函数，获取到 sp<ISurfaceComposerClient> conn 匿名 Binder 服务。
找到 SurfaceFlingerAIDL 服务端 createConnection 函数的实现：
// /frameworks/native/services/surfaceflinger/SurfaceFlinger.cpp
binder::Status SurfaceComposerAIDL::createConnection(sp<gui::ISurfaceComposerClient>* outClient) {
const sp<Client> client = sp<Client>::make(mFlinger);
if (client->initCheck() == NO_ERROR) {
*outClient = client;
return binder::Status::ok();
} else {
*outClient = nullptr;
return binderStatusFromStatusT(BAD_VALUE);
}
}
1
2
3
4
5
6
7
8
9
10
11
12
2
3
4
5
6
7
8
9
10
11
12
new 一个 Client 然后通过参数返回
那这个 Client 又是啥呢？找到 Client 的实现：
// /frameworks/native/services/surfaceflinger/Client.h
class Client : public gui::BnSurfaceComposerClient {
public:
explicit Client(const sp<SurfaceFlinger>& flinger);
~Client() = default;
status_t initCheck() const;
private:
// ISurfaceComposerClient interface
binder::Status createSurface(const std::string& name, int32_t flags, const sp<IBinder>& parent,
const gui::LayerMetadata& metadata,
gui::CreateSurfaceResult* outResult) override;
binder::Status clearLayerFrameStats(const sp<IBinder>& handle) override;
binder::Status getLayerFrameStats(const sp<IBinder>& handle,
gui::FrameStats* outStats) override;
binder::Status mirrorSurface(const sp<IBinder>& mirrorFromHandle,
gui::CreateSurfaceResult* outResult) override;
binder::Status mirrorDisplay(int64_t displayId, gui::CreateSurfaceResult* outResult) override;
// constant
sp<SurfaceFlinger> mFlinger;
// thread-safe
mutable Mutex mLock;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Client 是一个 binder 服务端类，内部持有一个 SurfaceFlinger 的指针，指针的值通过构造函数传入。

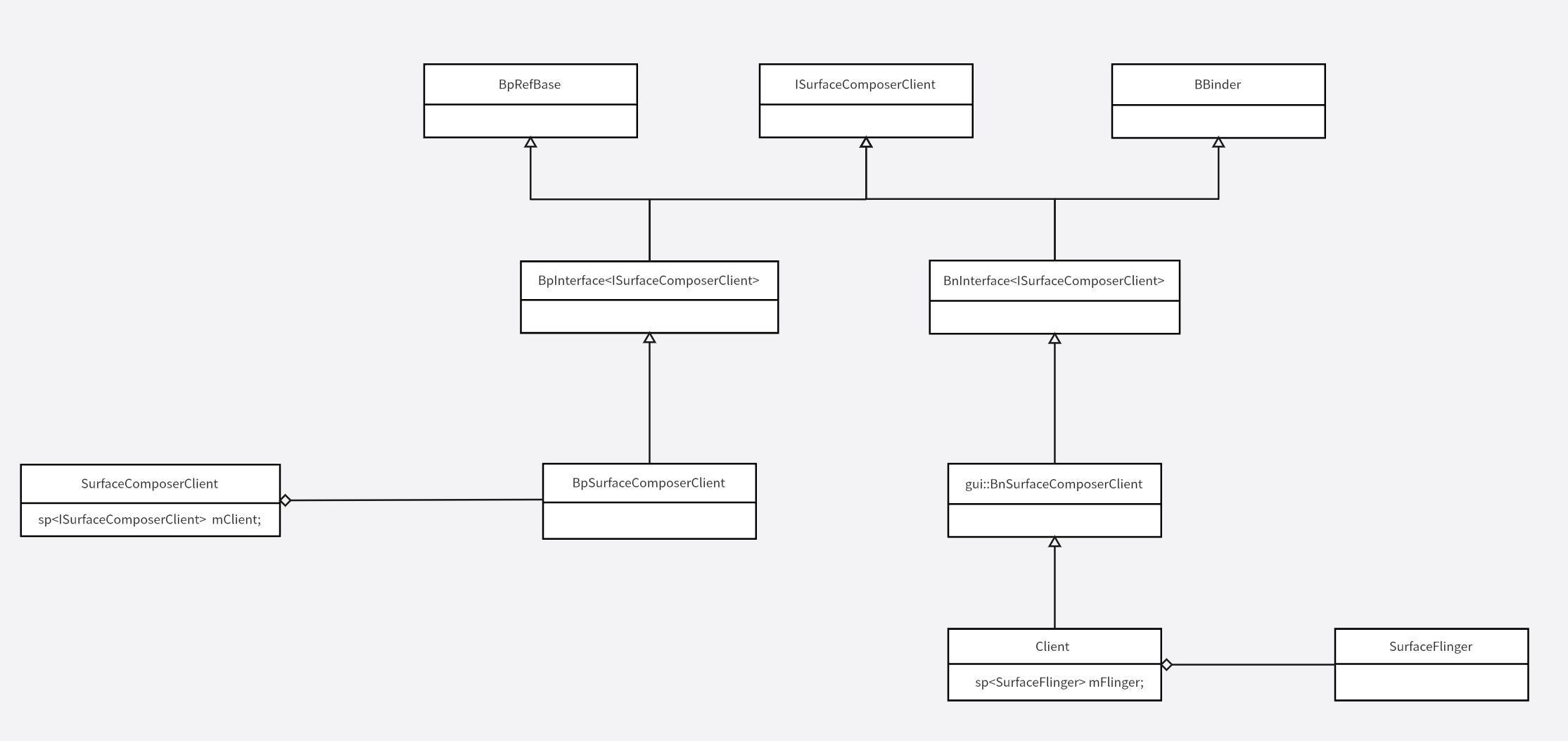

该匿名 Binder 服务相关类的关系如图所示：
可以看出，Client 实际就是一个匿名 Binder 服务。
每个 App 都会有一个匿名 Binder 代理端对象，SF 中有对应的 Client Binder 服务端类与之对应：
# 总结
- SurfaceFlinger 进程中提供了 SurfaceFlinger Binder 服务，SurfaceFlingerAIDL Binder 服务和一个名为 Client 的匿名 Binder 服务
整个 binder 通信通道的建立过程：
- App 向 ServiceManager 查询 SurfaceFlingerAIDL 服务，获取到服务的代理端对象
- 接着远程调用 SurfaceFlingerAIDL 服务的 createConnection 函数，获取到 Client 匿名服务的代理端对象
- App 想要调用 SurfaceFlinger 相关的功能，可以远程调用 Client 服务，Client 服务中具体的功能再委托给 SurfaceFlinger 来实现。
