# Binder Java 层服务获取与使用过程分析
# 服务获取过程
在 Binder 程序示例之 Java 篇 (opens new window) 中我们介绍了，Client 通过以下代码获取到服务：
IBinder binder = ServiceManager.getService("hello");
IHelloService svr = IHelloService.Stub.asInterface(binder);
1
2
2
ServiceManager.getService 的具体实现如下：
// frameworks/base/core/java/android/os/ServiceManager.java
@UnsupportedAppUsage
private static Map<String, IBinder> sCache = new ArrayMap<String, IBinder>();
@UnsupportedAppUsage
public static IBinder getService(String name) {
try {
//先在缓存里面取数据
IBinder service = sCache.get(name);
if (service != null) {
return service;
} else {
//缓存如果没有，重新获取
return Binder.allowBlocking(rawGetService(name));
}
} catch (RemoteException e) {
Log.e(TAG, "error in getService", e);
}
return null;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
先从 Scache 缓存中去取 IBinder 对象，缓存中没有就会调用 rawGetService(name) 获取：
private static IBinder rawGetService(String name) throws RemoteException {
final long start = sStatLogger.getTime();
// getIServiceManager() 等价于 new ServiceManagerProxy(new BinderProxy(0))
final IBinder binder = getIServiceManager().getService(name);
final int time = (int) sStatLogger.logDurationStat(Stats.GET_SERVICE, start);
final int myUid = Process.myUid();
final boolean isCore = UserHandle.isCore(myUid);
final long slowThreshold = isCore
? GET_SERVICE_SLOW_THRESHOLD_US_CORE
: GET_SERVICE_SLOW_THRESHOLD_US_NON_CORE;
synchronized (sLock) {
sGetServiceAccumulatedUs += time;
sGetServiceAccumulatedCallCount++;
final long nowUptime = SystemClock.uptimeMillis();
// Was a slow call?
if (time >= slowThreshold) {
// We do a slow log:
// - At most once in every SLOW_LOG_INTERVAL_MS
// - OR it was slower than the previously logged slow call.
if ((nowUptime > (sLastSlowLogUptime + SLOW_LOG_INTERVAL_MS))
|| (sLastSlowLogActualTime < time)) {
EventLogTags.writeServiceManagerSlow(time / 1000, name);
sLastSlowLogUptime = nowUptime;
sLastSlowLogActualTime = time;
}
}
// Every GET_SERVICE_LOG_EVERY_CALLS calls, log the total time spent in getService().
final int logInterval = isCore
? GET_SERVICE_LOG_EVERY_CALLS_CORE
: GET_SERVICE_LOG_EVERY_CALLS_NON_CORE;
if ((sGetServiceAccumulatedCallCount >= logInterval)
&& (nowUptime >= (sLastStatsLogUptime + STATS_LOG_INTERVAL_MS))) {
EventLogTags.writeServiceManagerStats(
sGetServiceAccumulatedCallCount, // Total # of getService() calls.
sGetServiceAccumulatedUs / 1000, // Total time spent in getService() calls.
(int) (nowUptime - sLastStatsLogUptime)); // Uptime duration since last log.
sGetServiceAccumulatedCallCount = 0;
sGetServiceAccumulatedUs = 0;
sLastStatsLogUptime = nowUptime;
}
}
return binder;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
getIServiceManager() 在上文已经解析过了，等价于 new ServiceManagerProxy(new BinderProxy(0))，具体过程可以参考 Binder Java 层服务注册过程分析：
//getIServiceManager() 等价于 new ServiceManagerProxy(new BinderProxy(0))
@UnsupportedAppUsage
private static IServiceManager getIServiceManager() {
if (sServiceManager != null) {
return sServiceManager;
}
// Find the service manager
sServiceManager = ServiceManagerNative
.asInterface(Binder.allowBlocking(BinderInternal.getContextObject()));
return sServiceManager;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
2
3
4
5
6
7
8
9
10
11
12
13

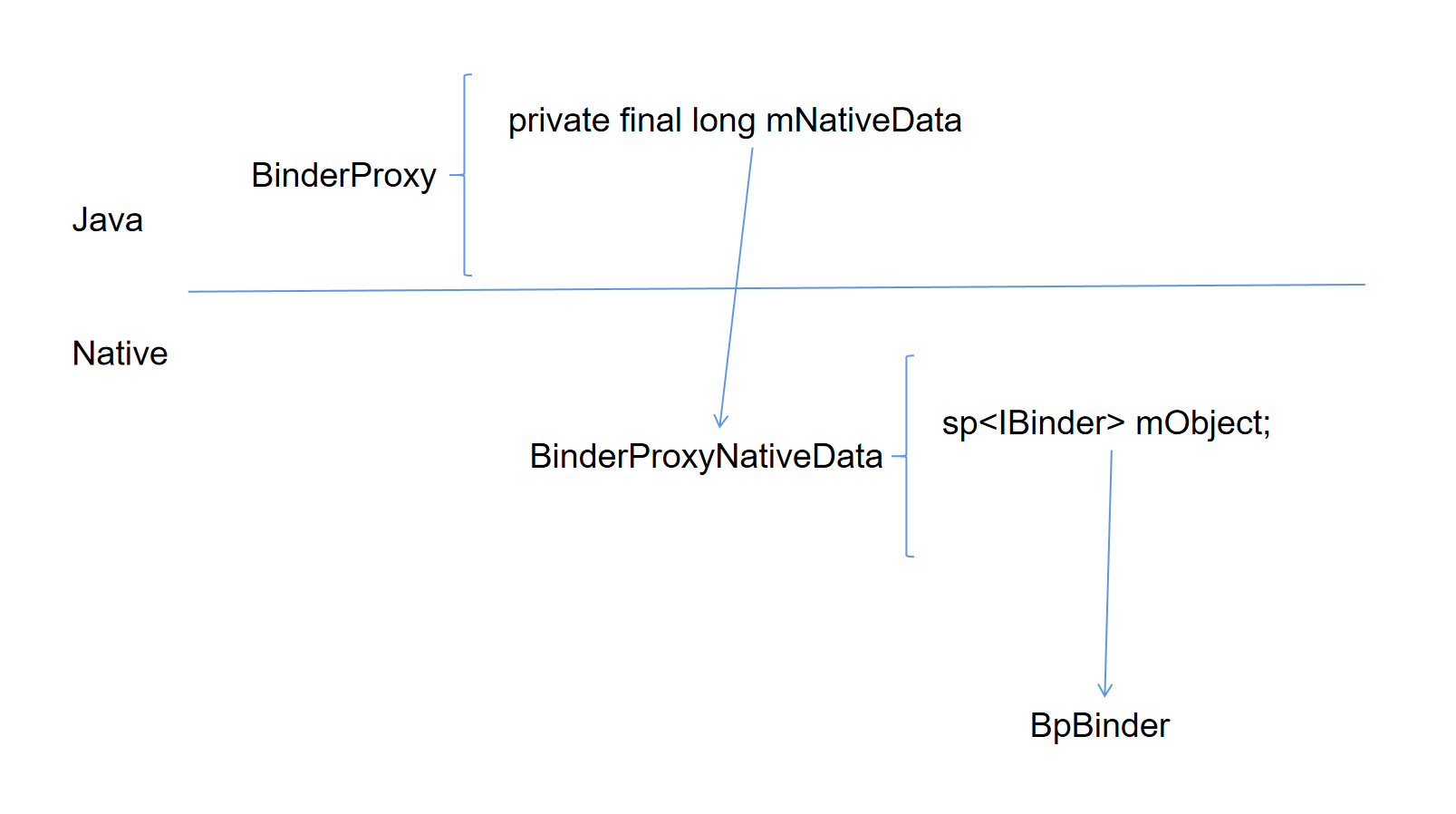

从上文知道，ServiceManagerProxy 内部的 BinderProxy 是一个横跨 native 与 java 的数据：
上面的方法会返回一个 ServiceManagerProxy 对象，接着会调用该对象的 getService 方法：
@UnsupportedAppUsage
public IBinder getService(String name) throws RemoteException {
Parcel data = Parcel.obtain();
Parcel reply = Parcel.obtain();
data.writeInterfaceToken(IServiceManager.descriptor);
data.writeString(name);
//BinderProxy 的 transact
mRemote.transact(GET_SERVICE_TRANSACTION, data, reply, 0);
IBinder binder = reply.readStrongBinder();
reply.recycle();
data.recycle();
return binder;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
2
3
4
5
6
7
8
9
10
11
12
13
这里的 mRemote 就是 new ServiceManagerProxy 时传入的 BinderProxy：
public ServiceManagerProxy(IBinder remote) {
mRemote = remote;
}
1
2
3
2
3
接着就会调用 BinderProxy 的 transact 的源码：
public boolean transact(int code, Parcel data, Parcel reply, int flags) throws RemoteException {
Binder.checkParcel(this, code, data, "Unreasonably large binder buffer");
//......
try {
//关注这里
return (code, data, reply, flags);
} finally {
//......
}
}
//native 方法
public native boolean transactNative(int code, Parcel data, Parcel reply,int flags) throws RemoteException;
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
transact 会调用 transactNative 发起远程调用，transactNative 是一个 native 方法，具体实现在 frameworks/base/core/jni/android_util_Binder.cpp：
// obj 对应类型为 BinderProxy
static jboolean android_os_BinderProxy_transact(JNIEnv* env, jobject obj,
jint code, jobject dataObj, jobject replyObj, jint flags) // throws RemoteException
{
if (dataObj == NULL) {
jniThrowNullPointerException(env, NULL);
return JNI_FALSE;
}
// Java 对象 转为 c++ 对象
Parcel* data = parcelForJavaObject(env, dataObj);
if (data == NULL) {
return JNI_FALSE;
}
// Java 对象 转为 c++ 对象
Parcel* reply = parcelForJavaObject(env, replyObj);
if (reply == NULL && replyObj != NULL) {
return JNI_FALSE;
}
//拿到全局变量 BinderProxyNativeData 的成员变量 mObject，实际是一个 BpBinder
IBinder* target = getBPNativeData(env, obj)->mObject.get();
if (target == NULL) {
jniThrowException(env, "java/lang/IllegalStateException", "Binder has been finalized!");
return JNI_FALSE;
}
ALOGV("Java code calling transact on %p in Java object %p with code %" PRId32 "\n",
target, obj, code);
bool time_binder_calls;
int64_t start_millis;
if (kEnableBinderSample) {
// Only log the binder call duration for things on the Java-level main thread.
// But if we don't
time_binder_calls = should_time_binder_calls();
if (time_binder_calls) {
start_millis = uptimeMillis();
}
}
//BpBinder 发起远程调用
status_t err = target->transact(code, *data, reply, flags);
if (kEnableBinderSample) {
if (time_binder_calls) {
conditionally_log_binder_call(start_millis, target, code);
}
}
if (err == NO_ERROR) {
return JNI_TRUE;
} else if (err == UNKNOWN_TRANSACTION) {
return JNI_FALSE;
}
signalExceptionForError(env, obj, err, true /*canThrowRemoteException*/, data->dataSize());
return JNI_FALSE;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
可以看出，绕了一圈还是通过 native 层的 BpBinder 发起远程调用。BpBinder 的调用细节和 Binder 服务注册过程情景分析之C++篇 (opens new window) 相同，这里不在重复。
transact 发起服务获取远程访问后，ServiceManager端会返回的是一个整型 handle，handle 值存放在 reply中，回到 Java 层后，通过 reply.readStrongBinder() 将 handle 包装为一个 IBinder 对象(实际是一个 BinderProxy 对象)。 reply.readStrongBinder() 的包装过程会在
接着调用下面的方法，将 IBinder 对象装换为 IHelloService：
IHelloService svr = IHelloService.Stub.asInterface(binder);
public static com.yuandaima.IHelloService asInterface(android.os.IBinder obj)
{
if ((obj==null)) {
return null;
}
android.os.IInterface iin = obj.queryLocalInterface(DESCRIPTOR);
if (((iin!=null)&&(iin instanceof com.yuandaima.IHelloService))) {
return ((com.yuandaima.IHelloService)iin);
}
//实际返回一个 IHelloService.Stub.Proxy binder 客户端类对象
return new com.yuandaima.IHelloService.Stub.Proxy(obj);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2
3
4
5
6
7
8
9
10
11
12
13
14
至此我们就获取到了 Hello 服务的客户端类对象，接着我们就可以通过这个对象使用我们自定义的远程服务了。
# 服务使用过程
通过 Hello 服务的代理类 com.yuandaima.IHelloService.Stub.Proxy 我们就可以发起远程调用了：
// IHelloService 的实际类型是 com.yuandaima.IHelloService.Stub.Proxy
IHelloService svr = IHelloService.Stub.asInterface(binder);
//发起远程调用
svr.sayhello();
//sayhello 的代码又 aidl 生成
@Override public void sayhello() throws android.os.RemoteException
{
android.os.Parcel _data = android.os.Parcel.obtain();
android.os.Parcel _reply = android.os.Parcel.obtain();
try {
_data.writeInterfaceToken(DESCRIPTOR);
boolean _status = mRemote.transact(Stub.TRANSACTION_sayhello, _data, _reply, 0);
if (!_status && getDefaultImpl() != null) {
getDefaultImpl().sayhello();
return;
}
_reply.readException();
}
finally {
_reply.recycle();
_data.recycle();
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
构建好 data reply 两个 Parcel 数据，然后通过 mRemote.transact 发起远程调用。
mRemote 通过构造函数传入，实际类型是 BinnderProxy：
private android.os.IBinder mRemote;
Proxy(android.os.IBinder remote)
{
mRemote = remote;
}
1
2
3
4
5
2
3
4
5
接着调用 BinderProxy 的 transact 方法，这个方法的调用上面已经解析过几次了，这里总结一下流程:
BinderProxy->transact
transactNative
android_os_BinderProxy_transact
BpBinder->transact
IPCThreadState::self()->transact
ioctl
1
2
3
4
5
6
2
3
4
5
6
层层递进，最终还是调用到 ioctl 发起远程调用。
在 Android 中有用于专门处理的 Binder 消息的线程，我们称这些线程是 Binder 线程。
在 Java 层的示例程序中，Server 端并没有启动 binder 线程，那我们的 Server 端是怎么收到远程发送过来的数据的呢？
Java 进程中的 Binder 线程是在 Java 进程启动时创建的，Java 进程的启动都是通过 Process.start()方法，向 Zygote 进程发出创建进程的 socket 消息，Zygote 收到消息后会调用 Zygote.forkAndSpecialize() 来 fork 出新进程，在新进程中会调用到 RuntimeInit.nativeZygoteInit 方法，该方法经过 jni 映射，最终会调用到 app_main.cpp 中的 onZygoteInit
virtual void onZygoteInit()
{
sp<ProcessState> proc = ProcessState::self();
ALOGV("App process: starting thread pool.\n");
proc->startThreadPool();
}
1
2
3
4
5
6
2
3
4
5
6
Android 中的 Java 进程就在这里启动了 Binder 线程。、
Binder 线程中通过以下的代码读取和解析 binder 数据：
void IPCThreadState::joinThreadPool(bool isMain)
{
LOG_THREADPOOL("**** THREAD %p (PID %d) IS JOINING THE THREAD POOL\n", (void*)pthread_self(), getpid());
mOut.writeInt32(isMain ? BC_ENTER_LOOPER : BC_REGISTER_LOOPER);
status_t result;
do { //进入循环
processPendingDerefs();
// now get the next command to be processed, waiting if necessary
//读数据，处理数据
result = getAndExecuteCommand();
if (result < NO_ERROR && result != TIMED_OUT && result != -ECONNREFUSED && result != -EBADF) {
ALOGE("getAndExecuteCommand(fd=%d) returned unexpected error %d, aborting",
mProcess->mDriverFD, result);
abort();
}
// Let this thread exit the thread pool if it is no longer
// needed and it is not the main process thread.
if(result == TIMED_OUT && !isMain) {
break;
}
} while (result != -ECONNREFUSED && result != -EBADF);
LOG_THREADPOOL("**** THREAD %p (PID %d) IS LEAVING THE THREAD POOL err=%d\n",
(void*)pthread_self(), getpid(), result);
mOut.writeInt32(BC_EXIT_LOOPER);
talkWithDriver(false);
}
status_t IPCThreadState::getAndExecuteCommand()
{
status_t result;
int32_t cmd;
// 和Binder驱动交互，此时已经从该逻辑中返回
result = talkWithDriver();
if (result >= NO_ERROR) {
...
// 读取mIn中的数据
cmd = mIn.readInt32();
...
// 调用executeCommand()对数据进行处理。
result = executeCommand(cmd);
...
}
return result;
}
status_t IPCThreadState::talkWithDriver(bool doReceive)
{
//...
do {
//...
//从这里唤醒
if (ioctl(mProcess->mDriverFD, BINDER_WRITE_READ, &bwr) >= 0)
err = NO_ERROR;
else
//...
} while (err == -EINTR);
//...
if (err >= NO_ERROR) {
// 清空已写的数据
if (bwr.write_consumed > 0) {
if (bwr.write_consumed < (ssize_t)mOut.dataSize())
mOut.remove(0, bwr.write_consumed);
else
mOut.setDataSize(0);
}
// 设置已读数据
if (bwr.read_consumed > 0) {
mIn.setDataSize(bwr.read_consumed);
mIn.setDataPosition(0);
}
...
return NO_ERROR;
}
return err;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
当远程数据到来时，Binder 线程会从休眠中唤醒：
//IPCThreadState.cpp
status_t IPCThreadState::talkWithDriver(bool doReceive)
{
//...
do {
//...
//从这里唤醒
if (ioctl(mProcess->mDriverFD, BINDER_WRITE_READ, &bwr) >= 0)
err = NO_ERROR;
else
//...
} while (err == -EINTR);
//...
if (err >= NO_ERROR) {
// 清空已写的数据
if (bwr.write_consumed > 0) {
if (bwr.write_consumed < (ssize_t)mOut.dataSize())
mOut.remove(0, bwr.write_consumed);
else
mOut.setDataSize(0);
}
// 设置已读数据
if (bwr.read_consumed > 0) {
mIn.setDataSize(bwr.read_consumed);
mIn.setDataPosition(0);
}
...
return NO_ERROR;
}
return err;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
唤醒后，会把读取到的数据写入 mIn 中，接着调用 executeCommand 处理收到的数据：
status_t IPCThreadState::getAndExecuteCommand()
{
status_t result;
int32_t cmd;
// 和Binder驱动交互，此时已经从该逻辑中返回
result = talkWithDriver();
if (result >= NO_ERROR) {
...
// 读取mIn中的数据
cmd = mIn.readInt32();
...
// 调用executeCommand()对数据进行处理。
result = executeCommand(cmd);
...
}
return result;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
在 executeCommand 中就会调用 BBinder 的 transact 处理收到的数据：
status_t IPCThreadState::executeCommand(int32_t cmd)
{
BBinder* obj;
RefBase::weakref_type* refs;
status_t result = NO_ERROR;
switch (cmd) {
...
case BR_TRANSACTION:
{
binder_transaction_data tr;
result = mIn.read(&tr, sizeof(tr));
...
Parcel buffer;
buffer.ipcSetDataReference(
reinterpret_cast<const uint8_t*>(tr.data.ptr.buffer),
tr.data_size,
reinterpret_cast<const size_t*>(tr.data.ptr.offsets),
tr.offsets_size/sizeof(size_t), freeBuffer, this);
...
Parcel reply;
...
if (tr.target.ptr) {
sp<BBinder> b((BBinder*)tr.cookie);
const status_t error = b->transact(tr.code, buffer, &reply, tr.flags);
if (error < NO_ERROR) reply.setError(error);
} else {
...
}
if ((tr.flags & TF_ONE_WAY) == 0) {
sendReply(reply, 0);
} else {
...
}
...
}
break;
...
}
...
return result;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
这里的 tr.cookie 的类型是 JavaBBinder 指针，当 Client 端获取服务返回时，由 binder 驱动处理和构建这个指针，并传回应用层。（这部分内容涉及到 Parcel 的数据结构设计，会在 Parcel 解析部分来讲解这部分内容）。
接着就会调用到 JavaBBinder 的 transact 函数，这个函数在 JavaBBinder 的父类中实现：
status_t BBinder::transact(
uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags)
{
data.setDataPosition(0);
status_t err = NO_ERROR;
switch (code) {
case PING_TRANSACTION:
reply->writeInt32(pingBinder());
break;
default: //走这个分支
err = onTransact(code, data, reply, flags);
break;
}
if (reply != nullptr) {
reply->setDataPosition(0);
}
return err;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
接着调用到 JavaBBinder 的 onTransact 函数：
//android_util_binder.cpp
virtual status_t onTransact(
uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags = 0)
{
JNIEnv* env = javavm_to_jnienv(mVM);
ALOGV("onTransact() on %p calling object %p in env %p vm %p\n", this, mObject, env, mVM);
IPCThreadState* thread_state = IPCThreadState::self();
const int32_t strict_policy_before = thread_state->getStrictModePolicy();
//通过JNI调用Binder（Java）中的execTransact方法
jboolean res = env->CallBooleanMethod(mObject, gBinderOffsets.mExecTransact,
code, reinterpret_cast<jlong>(&data), reinterpret_cast<jlong>(reply), flags);
if (env->ExceptionCheck()) {
jthrowable excep = env->ExceptionOccurred();
report_exception(env, excep,
"*** Uncaught remote exception! "
"(Exceptions are not yet supported across processes.)");
res = JNI_FALSE;
/* clean up JNI local ref -- we don't return to Java code */
env->DeleteLocalRef(excep);
}
...
return res != JNI_FALSE ? NO_ERROR : UNKNOWN_TRANSACTION;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
这里就会通过 JNI 调用到 Java 层的 execTransact 方法：
@UnsupportedAppUsage
private boolean execTransact(int code, long dataObj, long replyObj,
int flags) {
// At that point, the parcel request headers haven't been parsed so we do not know what
// WorkSource the caller has set. Use calling uid as the default.
final int callingUid = Binder.getCallingUid();
final long origWorkSource = ThreadLocalWorkSource.setUid(callingUid);
try {
//调用 execTransactInternal
return execTransactInternal(code, dataObj, replyObj, flags, callingUid);
} finally {
ThreadLocalWorkSource.restore(origWorkSource);
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2
3
4
5
6
7
8
9
10
11
12
13
14
接着调用 execTransactInternal：
private boolean execTransactInternal(int code, long dataObj, long replyObj, int flags,
int callingUid) {
// Make sure the observer won't change while processing a transaction.
final BinderInternal.Observer observer = sObserver;
final CallSession callSession =
observer != null ? observer.callStarted(this, code, UNSET_WORKSOURCE) : null;
Parcel data = Parcel.obtain(dataObj);
Parcel reply = Parcel.obtain(replyObj);
// theoretically, we should call transact, which will call onTransact,
// but all that does is rewind it, and we just got these from an IPC,
// so we'll just call it directly.
boolean res;
// Log any exceptions as warnings, don't silently suppress them.
// If the call was FLAG_ONEWAY then these exceptions disappear into the ether.
final boolean tracingEnabled = Binder.isTracingEnabled();
try {
if (tracingEnabled) {
final String transactionName = getTransactionName(code);
Trace.traceBegin(Trace.TRACE_TAG_ALWAYS, getClass().getName() + ":"
+ (transactionName != null ? transactionName : code));
}
//调用子类实现的 onTransact
res = onTransact(code, data, reply, flags);
} catch (RemoteException|RuntimeException e) {
if (observer != null) {
observer.callThrewException(callSession, e);
}
if (LOG_RUNTIME_EXCEPTION) {
Log.w(TAG, "Caught a RuntimeException from the binder stub implementation.", e);
}
if ((flags & FLAG_ONEWAY) != 0) {
if (e instanceof RemoteException) {
Log.w(TAG, "Binder call failed.", e);
} else {
Log.w(TAG, "Caught a RuntimeException from the binder stub implementation.", e);
}
} else {
// Clear the parcel before writing the exception
reply.setDataSize(0);
reply.setDataPosition(0);
reply.writeException(e);
}
res = true;
} finally {
if (tracingEnabled) {
Trace.traceEnd(Trace.TRACE_TAG_ALWAYS);
}
if (observer != null) {
// The parcel RPC headers have been called during onTransact so we can now access
// the worksource uid from the parcel.
final int workSourceUid = sWorkSourceProvider.resolveWorkSourceUid(
data.readCallingWorkSourceUid());
observer.callEnded(callSession, data.dataSize(), reply.dataSize(), workSourceUid);
}
}
checkParcel(this, code, reply, "Unreasonably large binder reply buffer");
reply.recycle();
data.recycle();
// Just in case -- we are done with the IPC, so there should be no more strict
// mode violations that have gathered for this thread. Either they have been
// parceled and are now in transport off to the caller, or we are returning back
// to the main transaction loop to wait for another incoming transaction. Either
// way, strict mode begone!
StrictMode.clearGatheredViolations();
return res;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
代码很长，但是核心的就一句 res = onTransact(code, data, reply, flags);，这里就会调用到子类实现的 onTransact 方法，具体就是示例程序中的 IHelloService.Stub 类的 onTransact
方法：
@Override public boolean onTransact(int code, android.os.Parcel data, android.os.Parcel reply, int flags) throws android.os.RemoteException
{
java.lang.String descriptor = DESCRIPTOR;
switch (code)
{
case INTERFACE_TRANSACTION:
{
reply.writeString(descriptor);
return true;
}
case TRANSACTION_sayhello:
{
data.enforceInterface(descriptor);
this.sayhello();
reply.writeNoException();
return true;
}
case TRANSACTION_sayhello_to:
{
data.enforceInterface(descriptor);
java.lang.String _arg0;
_arg0 = data.readString();
int _result = this.sayhello_to(_arg0);
reply.writeNoException();
reply.writeInt(_result);
return true;
}
case TRANSACTION_registerCallback:
{
data.enforceInterface(descriptor);
int _arg0;
_arg0 = data.readInt();
com.yuandaima.ICallback _arg1;
_arg1 = com.yuandaima.ICallback.Stub.asInterface(data.readStrongBinder());
this.registerCallback(_arg0, _arg1);
reply.writeNoException();
return true;
}
default:
{
return super.onTransact(code, data, reply, flags);
}
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
接着就会根据收到的 code 值调用到 sayhello 方法。
最后执行完成后会一步步回到上级函数，并调用 sendReply 函数，返回数据给 Client，这部分内容和服务使用过程绝大部分是一样的，我们就不再重复分析。
